Horizontal Sliding Fire Door

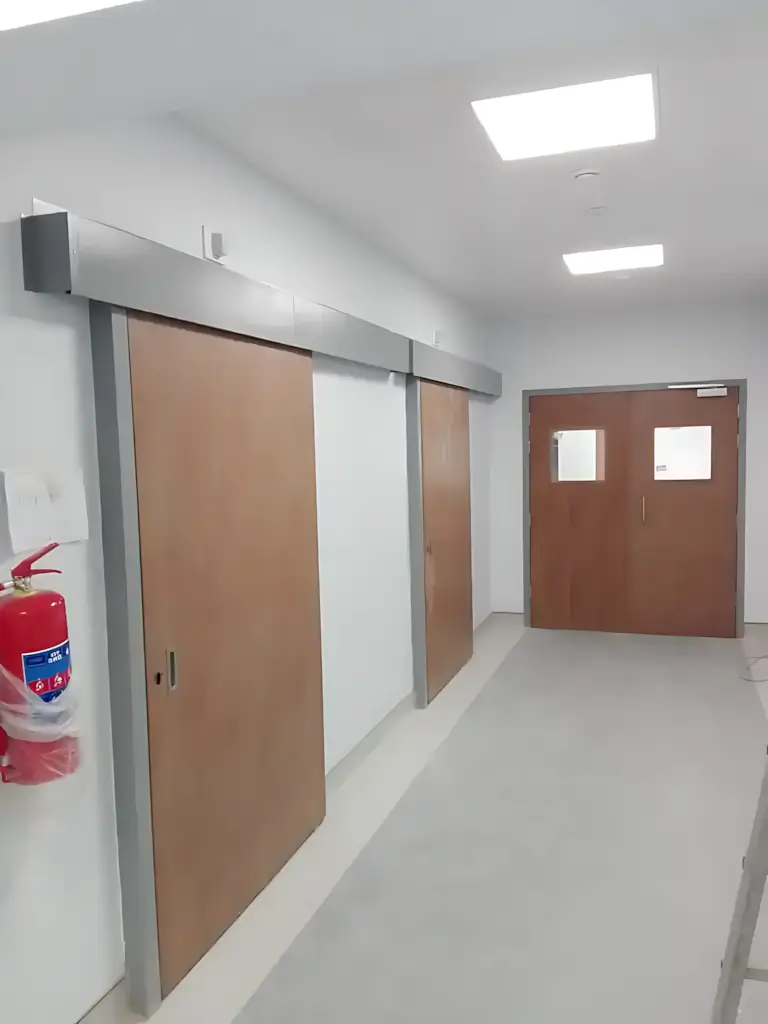

Sliding fire doors are typically large steel panels hung by rollers on an inclined rail or track. They are very useful in a wide range of spaces where larger openings are required to allow for heavy traffic, designed to separate fire areas within a building or protect the means of egress in the event of a fire, thereby limiting its spread.
Fire Protection
- • Up to 240 min integrity
- • EN1634-1 tested
- • Automatic fire activation
- • Emergency system linked
Construction
- • Stainless or galvanized steel
- • 1.5mm frame thickness
- • 1.2mm leaf thickness
- • Roller-hung on inclined track
Finishes
- • Primed or powder coated
- • Any RAL color available
- • Orange Peel, Sandy, Bright, Matt textures
- • Wood-like Italian sublimation
Applications & Features
Ideal Applications
Sliding fire doors are suitable for residential, commercial, and industrial applications. Perfect for large openings where conventional side-hung doors are not feasible, particularly for efficient movement of plant, equipment, people, vehicles and machinery.
Safety System
These fire doors are usually kept open and only close in the event of a fire. They must be linked to an emergency system that automatically activates if a fire, smoke or warning system/alarm is triggered, ensuring maximum safety.
Fitzpatrick sliding doors can be manufactured in many sizes and configurations to suit the architectural design of the protected area.
Wicket Door
Emergency Escape Solution
The option of a wicket door being built into your sliding door offers an emergency escape solution for pedestrians since the sliding door will be in closing position during a fire event.
