High Security Detention Steel Door

High Security Detention Steel Door

General Information

Detention doors can be used for several applications such as penitentiaries, police stations, airports, courthouses.

Doors are available in powder coated finish to any available RAL color and can be manufactured in many sizes and many configurations to suit the project specifications.

Doors are internally reinforced and filled with insulating material as to reduce inmate dull noise.

Fire rated and / or bullet proof are available options and mounted with a detention security lock and security hinges with non-removable pins.
Doors can be equipped with a highly secured vision panel and food pass assemblies.
All exposed screws are tamperproof button head type.

Notes

All steel works are produced, fabricated and assembled in accordance with NSSS;

Welding is in accordance with AWS D1.1 “STRUCTURAL WELDING CODE”;

All sharp edges and burrs are removed;

The door leaf and frame are in accordance with HMMA 863-04 performance requirements and made of zero spangle G90 GI steel.

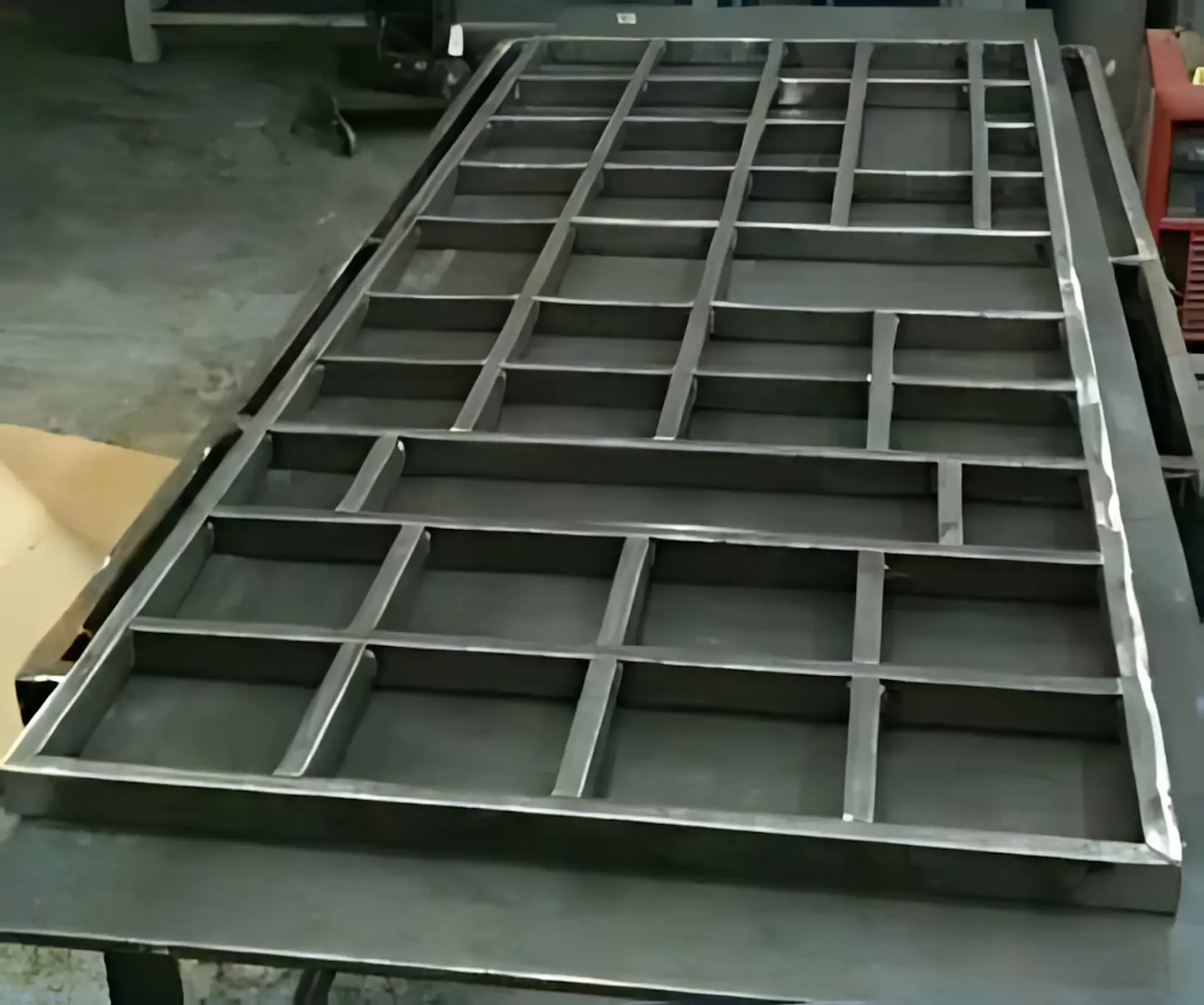

High Security Detention Steel Door Image 4

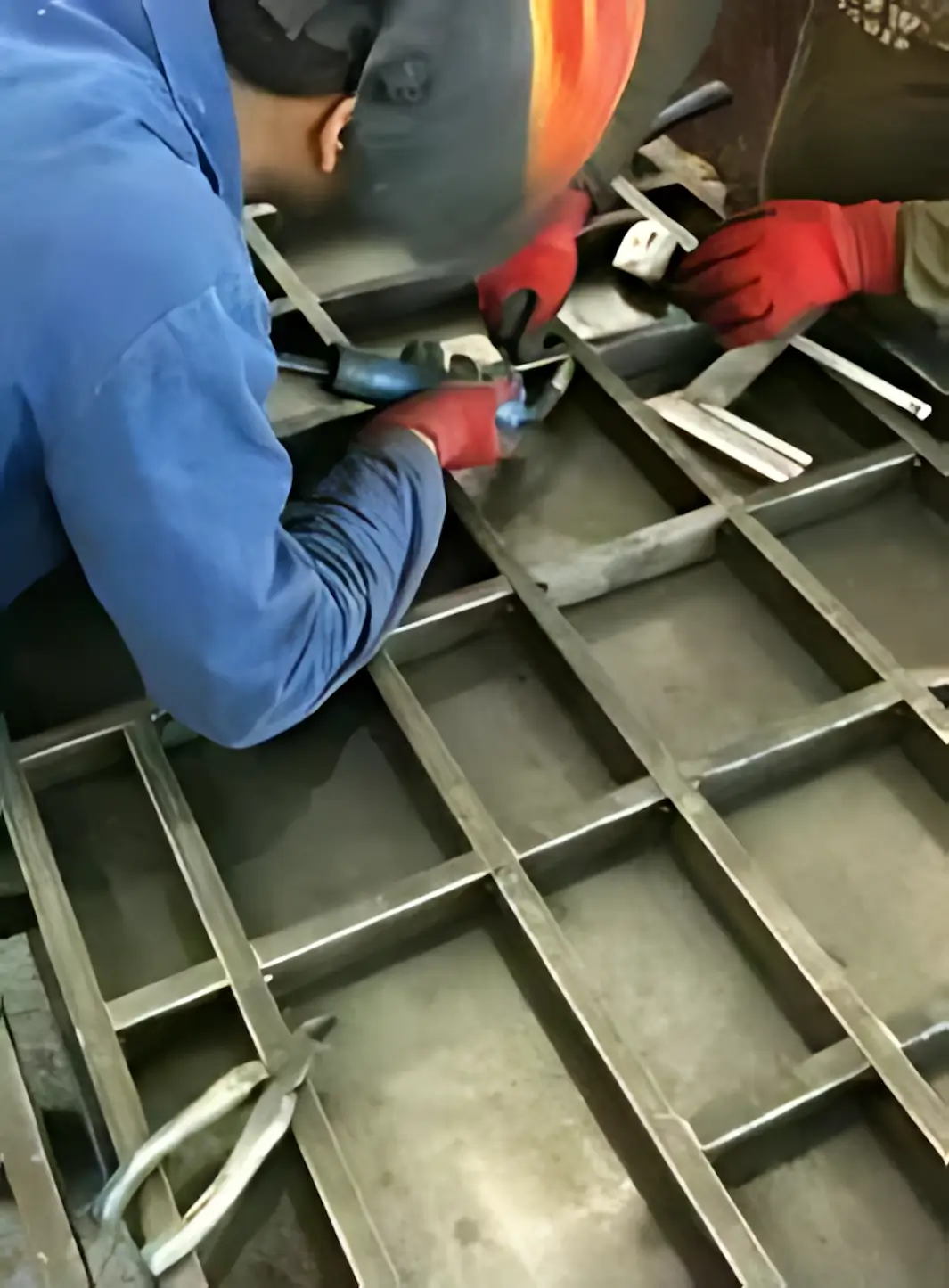

High Security Detention Steel Door Image 5

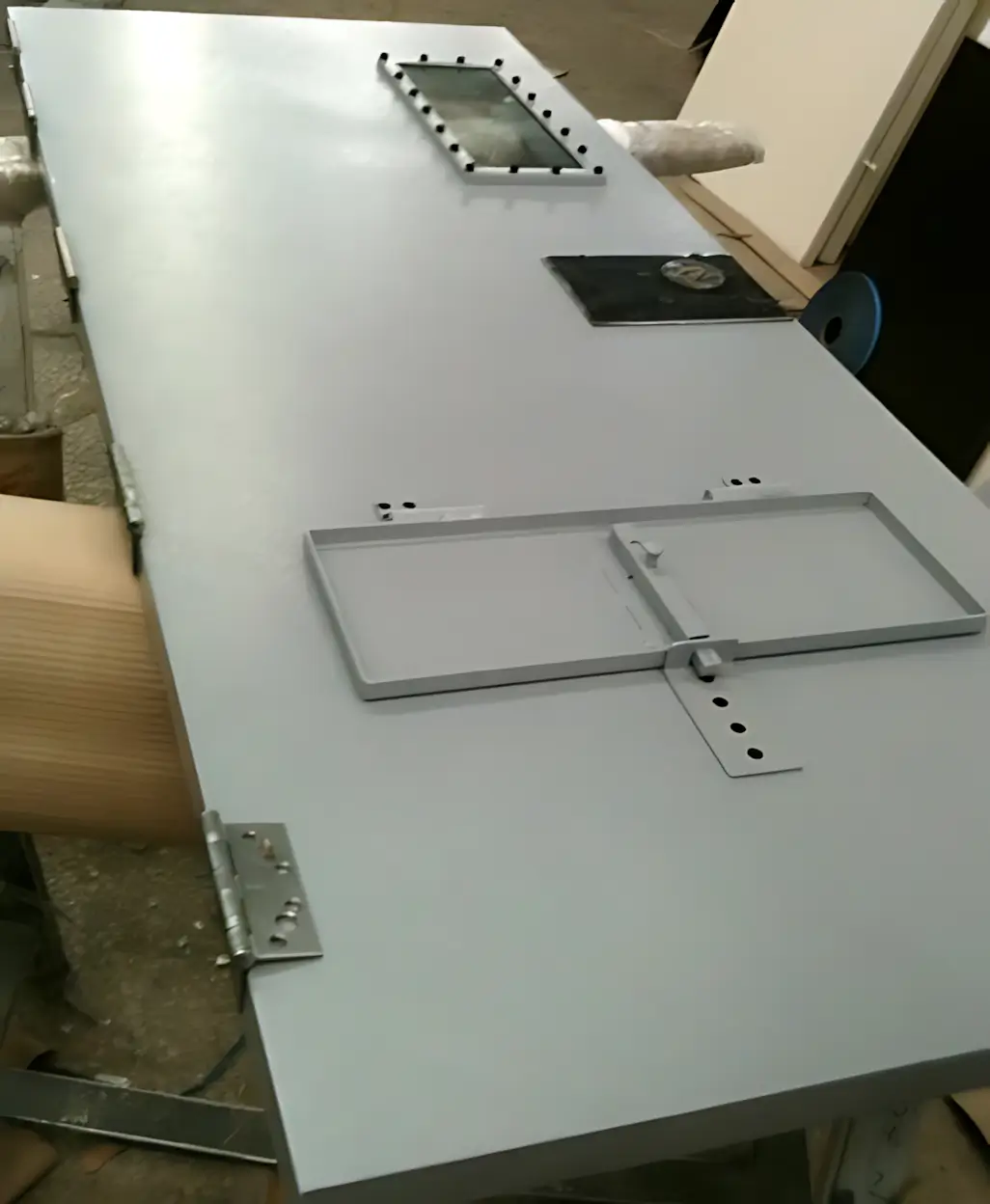

High Security Detention Steel Door Image 1

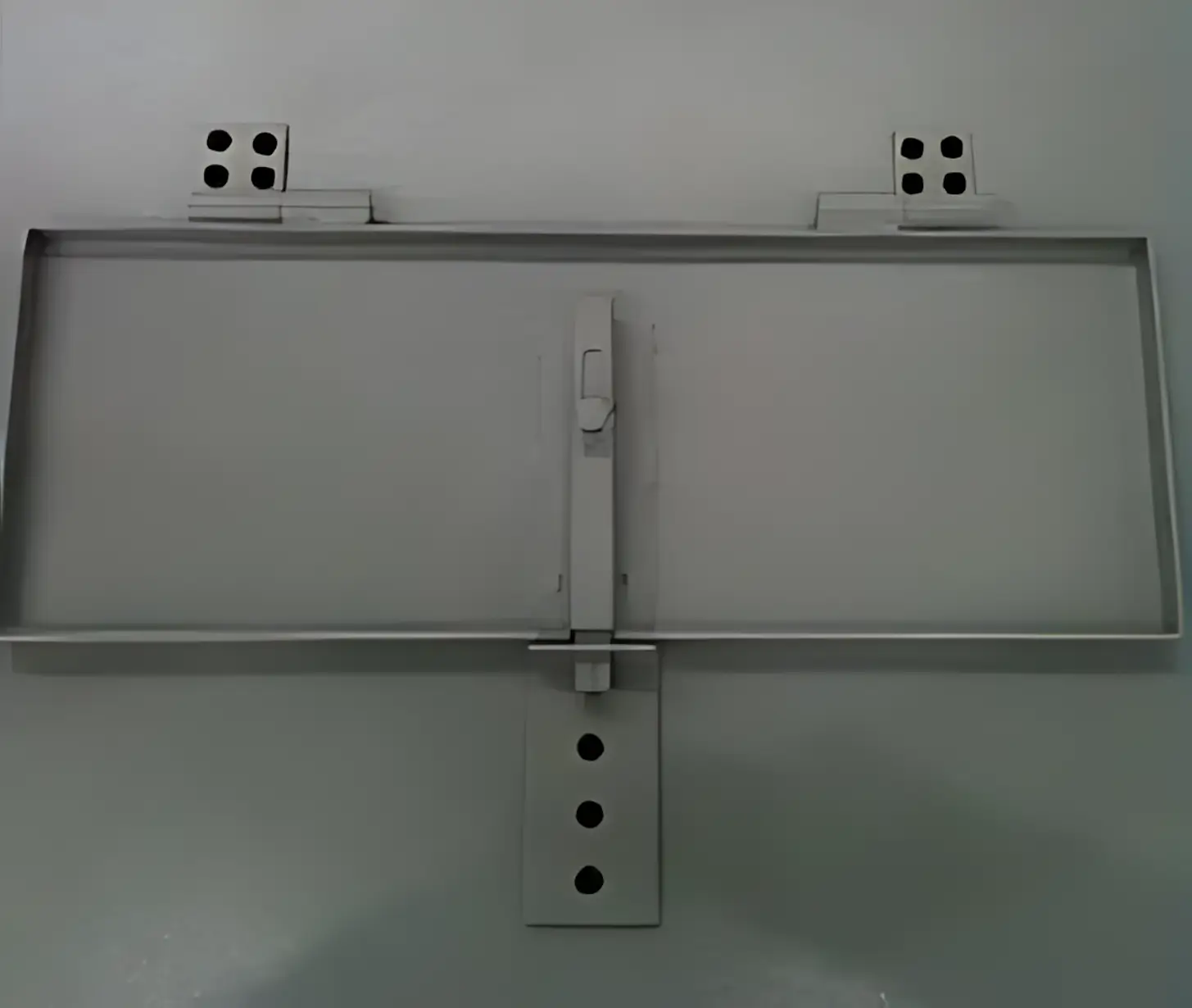

High Security Detention Steel Door Image 2

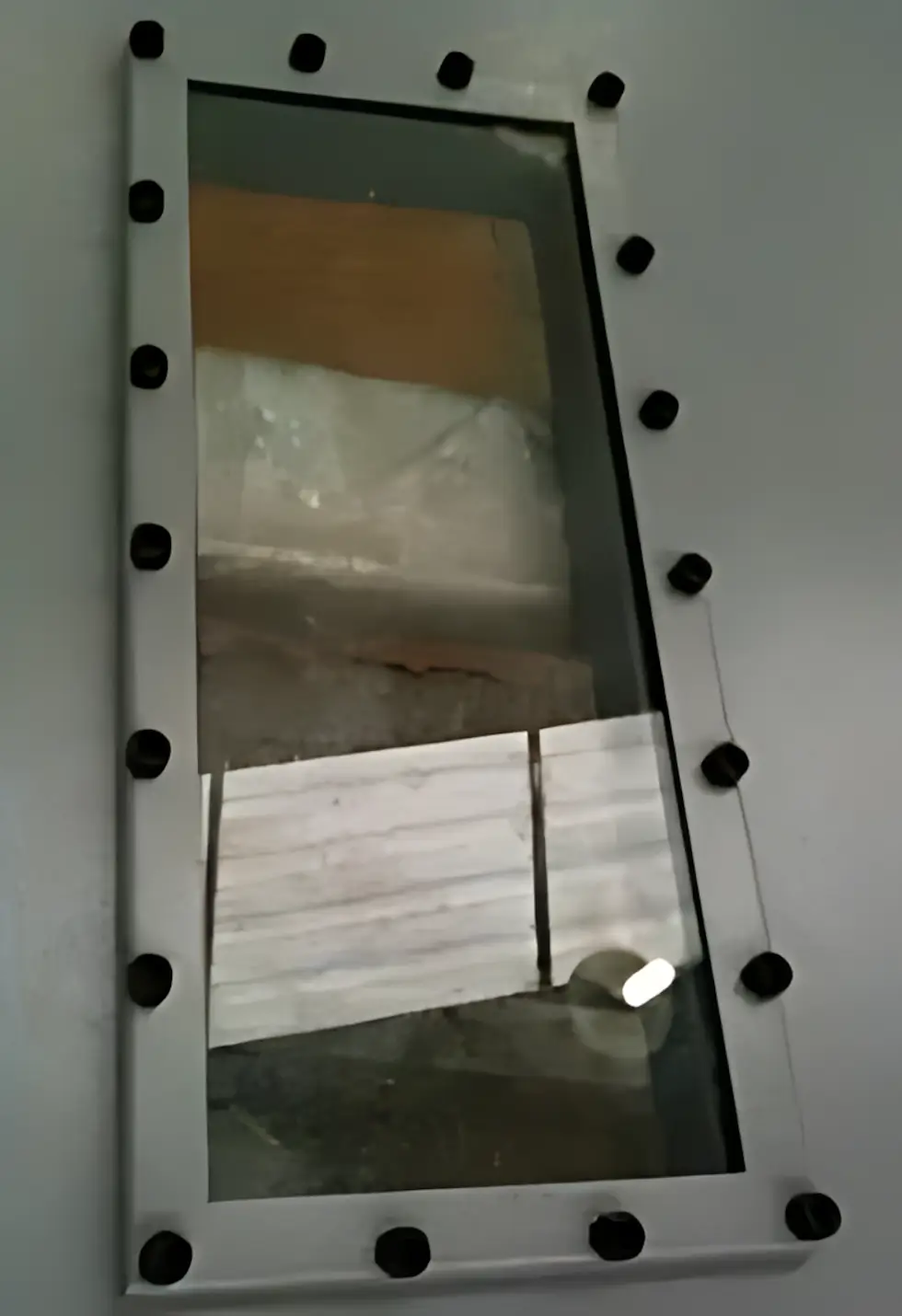

High Security Detention Steel Door Image 3
