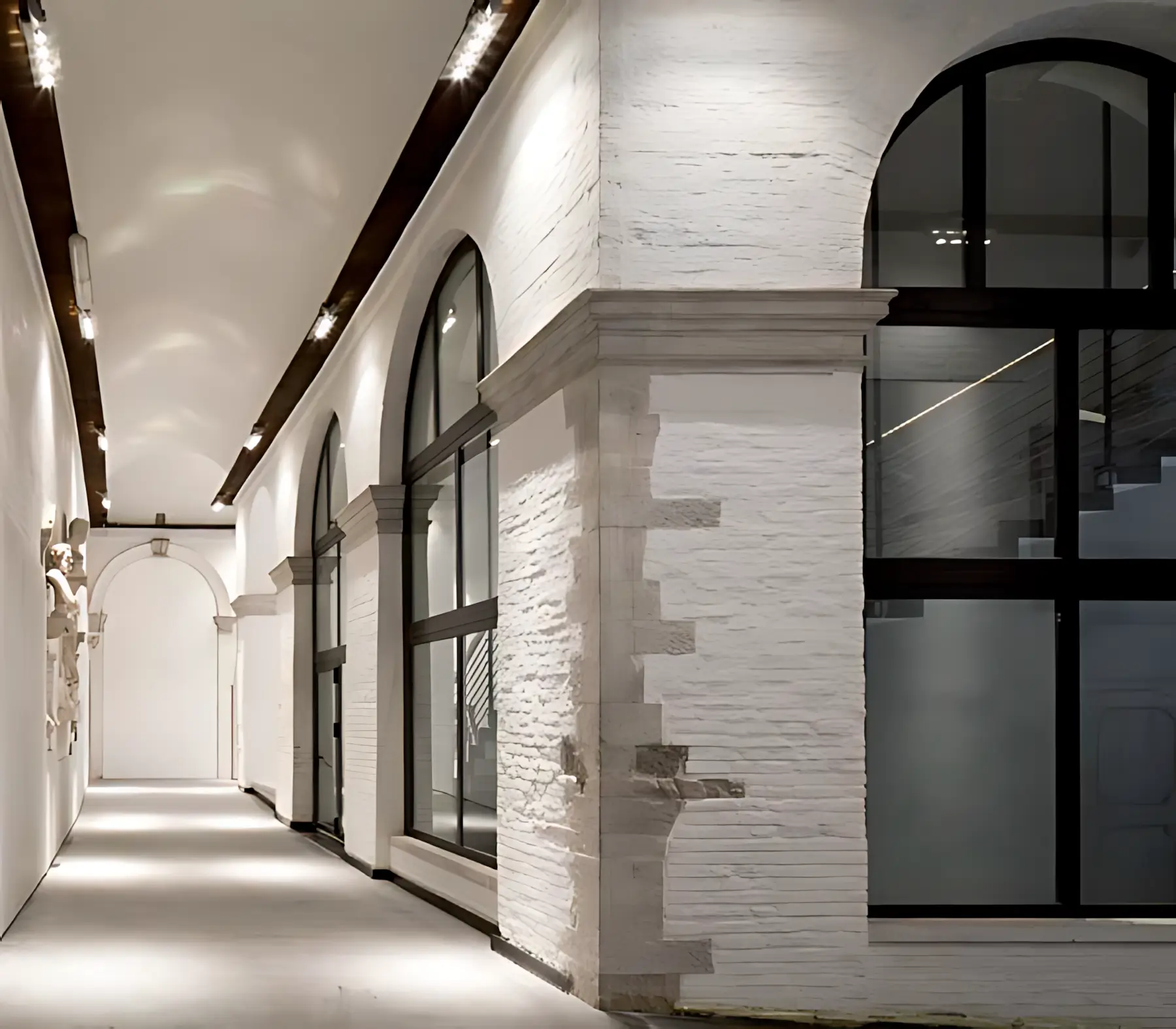

Fire Rated Glazed Partition
Where transparency and fire safety are required, Fire rated glazed partitions is the solution. It is designed to prevent the passage of fire, smoke and radiation. Doors and partitions are manufactured from fire rated profiles and customized to individual requirements including finishing and accessories.
Fire Protection
- • E, EW, EI ratings available
- • 30 to 120 minutes protection
- • Prevents fire, smoke & radiation
Construction
- • Steel profile construction
- • High aesthetics & quality
- • Custom configurations
Finishes & Glass
- • Powder coat to any RAL color
- • Stainless steel available
- • Extra clear, laminated, IGU glass
Standards
- • BS, EN, UL certified
- • ASTM E-119 compliant
- • NFPA 251/252 approved

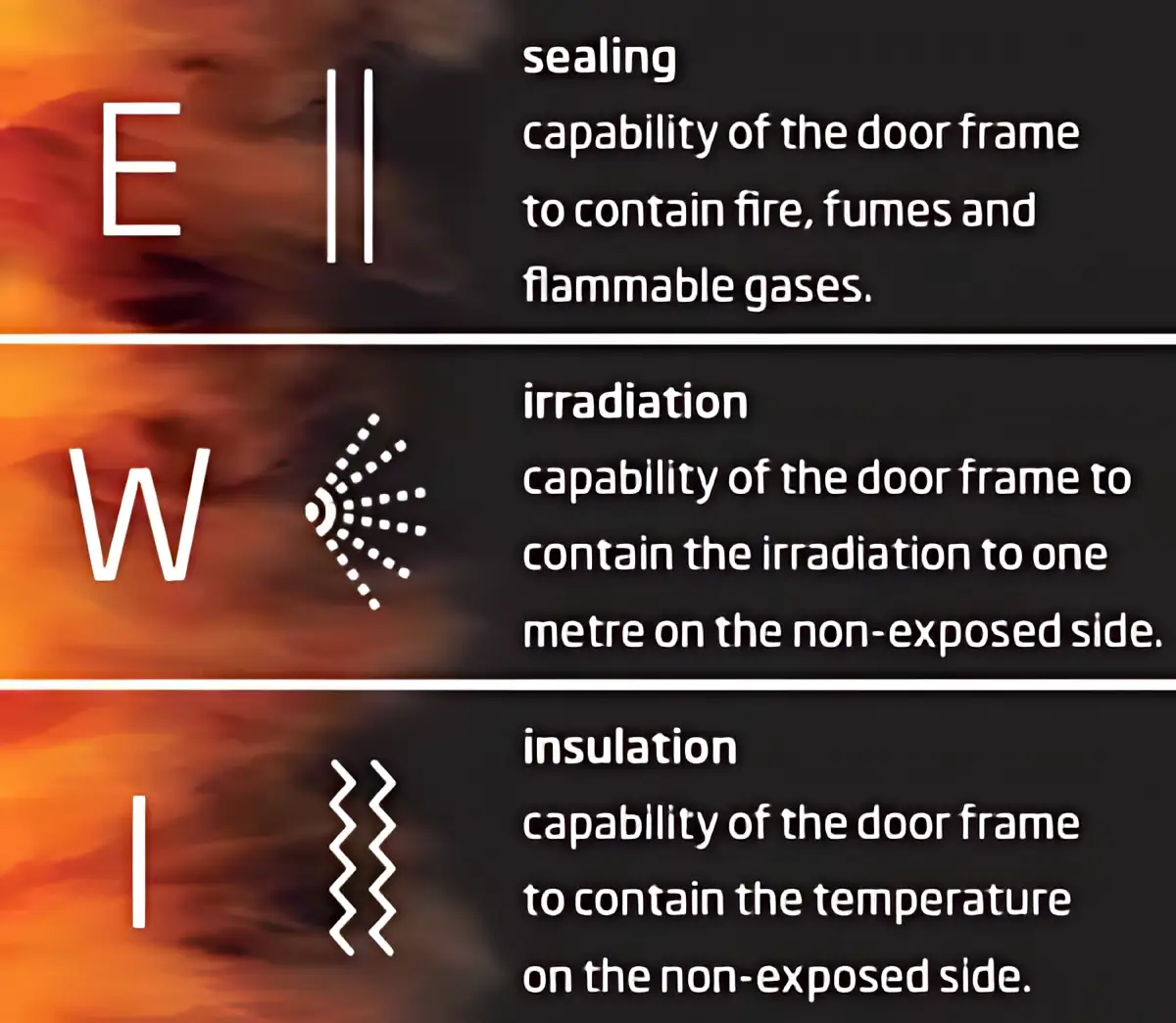

Fire Classification
A fire-resistance rating typically means the duration for which a passive fire protection system can withstand a standard fire resistance test. This can be quantified simply as a measure of time.
Our partitions are rated E (Integrity), EW (Integrity & Radiation) and EI (Integrity & Insulation) from 30 min up to 120 according to European and British standards, and rated Fire protection up to 90min and Fire resistance up to 120min as per American standards.
Characteristics
- Constructed from steel profiles
- High aesthetics and quality product
- Available Finishing: Steel painted powder coat to client RAL color and Stainless steel.
- Glass is available in different combination: Extra clear, laminated, IGU…
- Hardware depends on client requirements: available from basics to access controlled
Applicable Standards
BS Standards: BS476: part 22: 1987
EN Standard: EN 1363-1 & 2, EN 1364-1 & 3, EN 1634-1 and EN 13501-2
American Standard: UL 263 / ASTM E-119 (60-120 minutes), CAN/ULC-S101, NFPA 251, UL 9, UL 10C, UBC 7-2 and UBC 7-4, UL 10B, UL 10C, ASTM E2074, and NFPA 252
