Metal Frame

Fitzpatrick metal door frames can be manufactured in stainless steel or galvanized steel. They are available in either a primed or powder coated finish to any available RAL color and can be manufactured in many sizes and many configurations as follows:

• Single or double rebated matching the overall width of the wall.
• Corner type can be KD or corner welded type, variously as may be required by specifications.
• It can be “Flush” or “Wrap-Around”

• 1.5 mm or 2 mm steel sheet thickness.
• Our metal frames are delivered with textured powder coating, to agreed colors selected from RAL ranges.
• Various seals may be installed if required by specifications.

A full range of fixing options is available. Door frames are prepared to receive Fitzpatrick’s standard hinges although a range of alternative hinges is available to suit special applications.

Frames are manufactured to accommodate special ironmongery and preparations such as overhead closer, security bolts, panic furniture, lock strikes, flush bolts and indicator bolts.

For ease of transport and handling, frames are normally supplied in “knock-down” form to be later erected on site. This is particularly beneficial for large projects and for economic delivery worldwide.

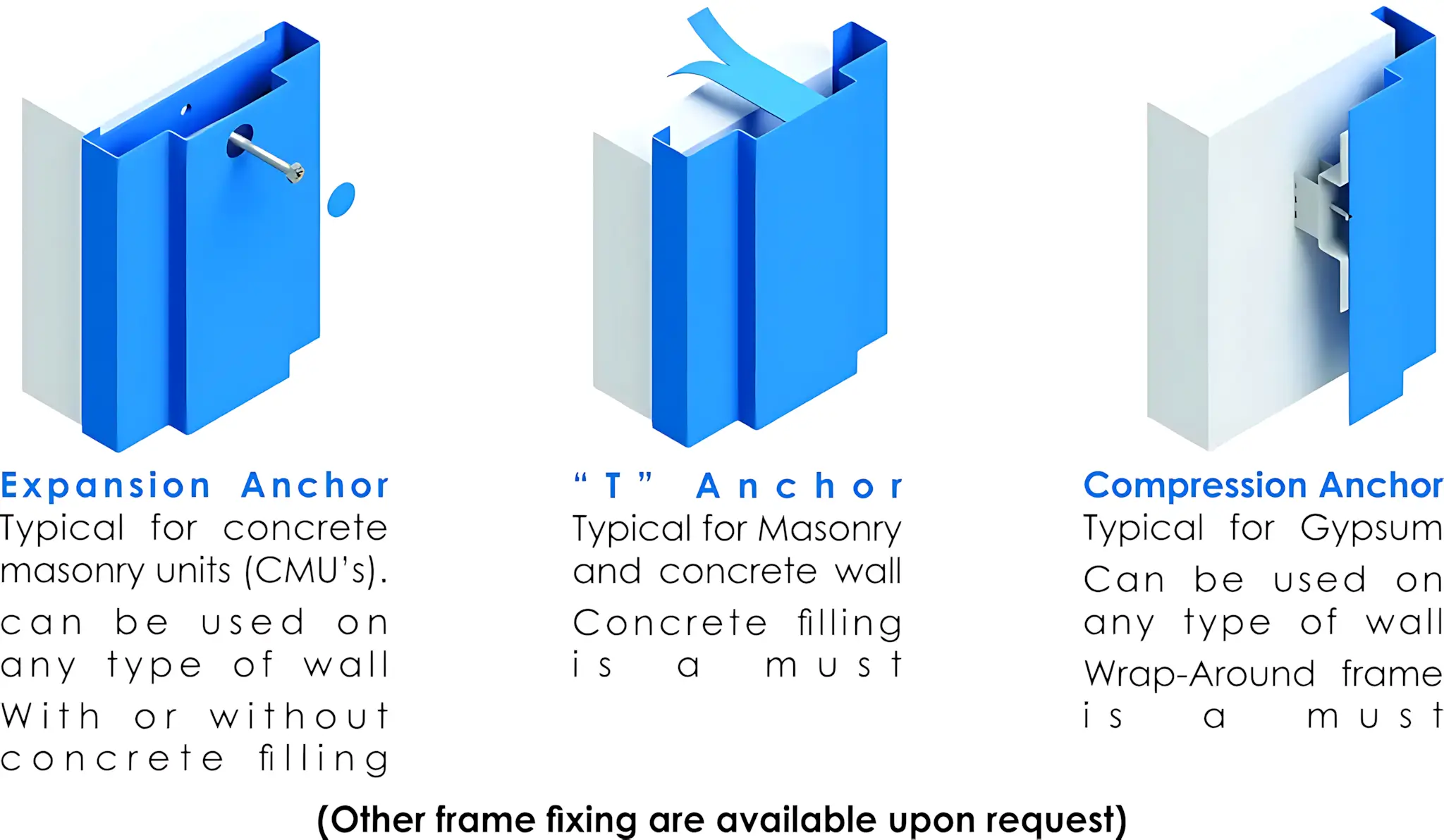

Frame Fixing

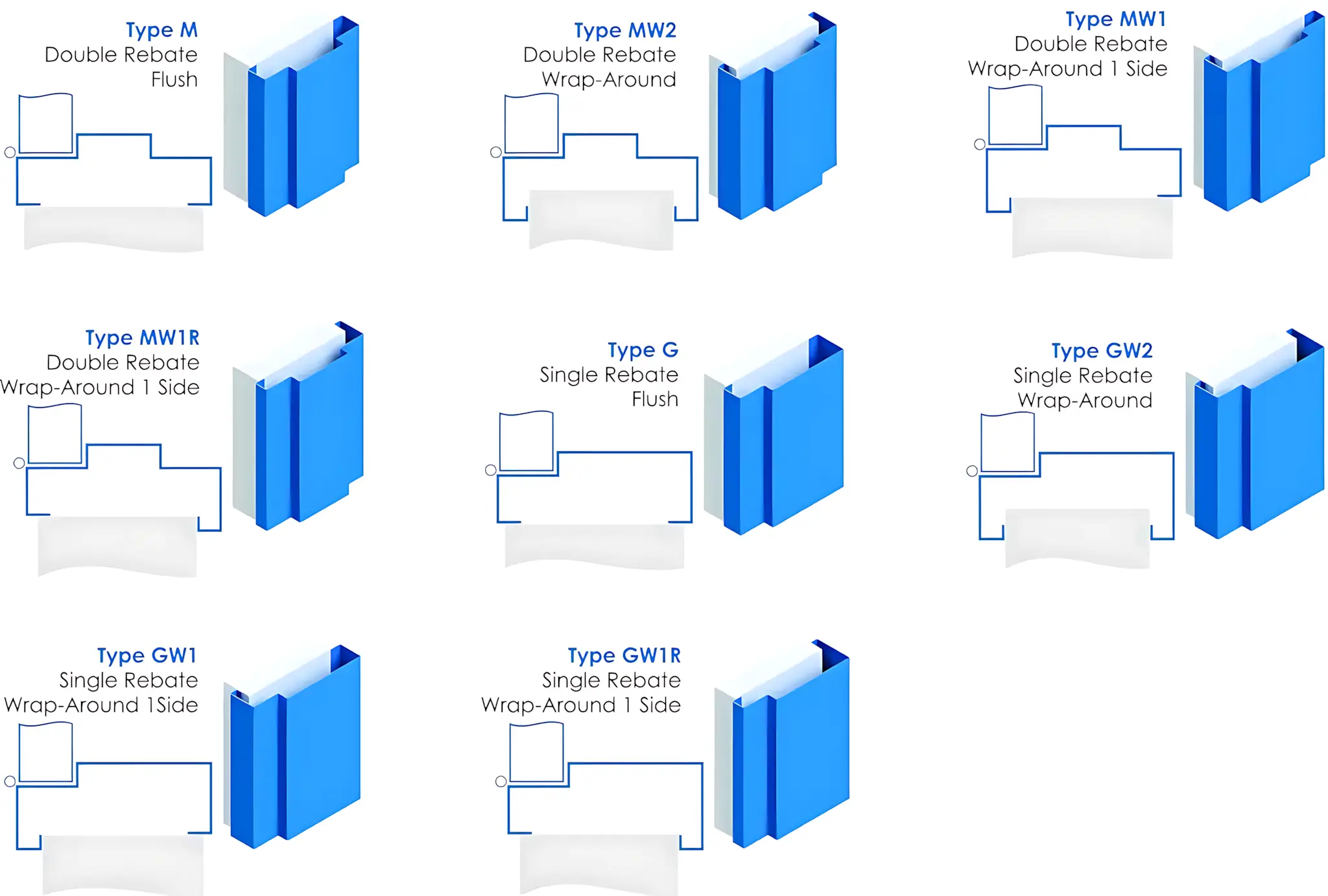

Frame Types

A wide range of frame profiles are available to suit for various applications for either traditional or new methods of construction. The illustrations below show the most commonly used frame profiles.

(Double egress frame, Double action frame and other profiles are available upon request)
